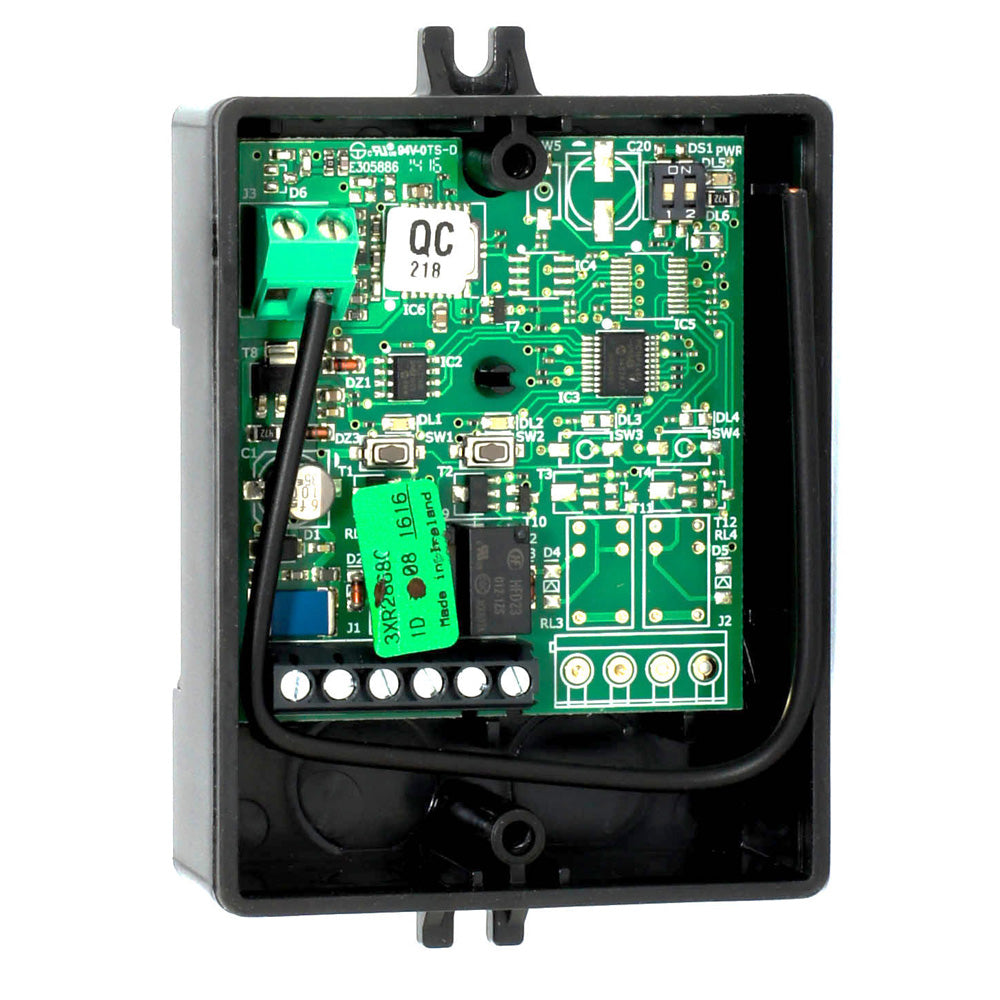

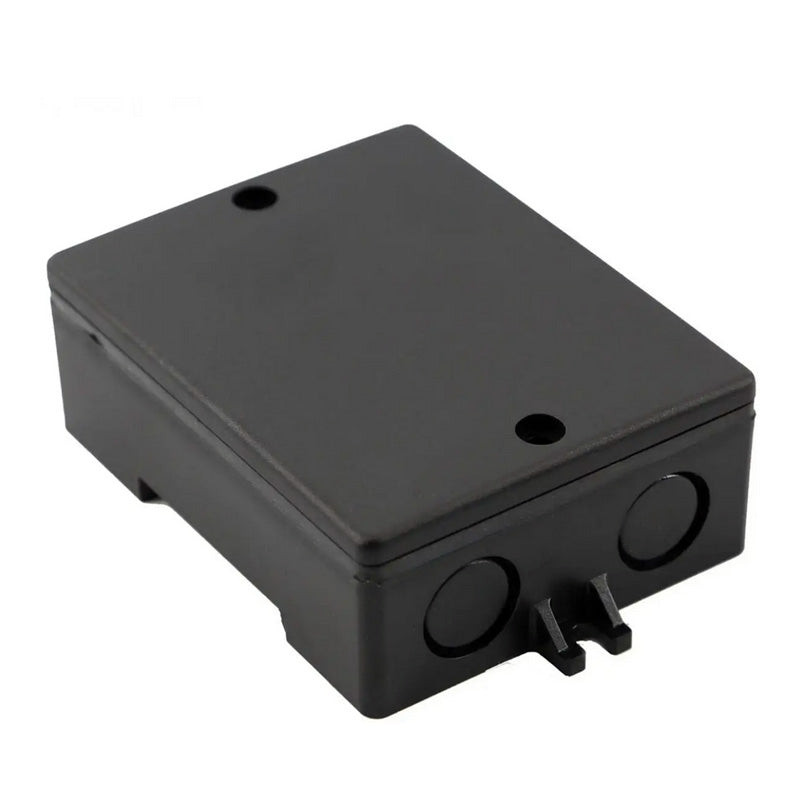

The Faac XR2 868 C is a multifunctional external receiver with two channels and a frequency of 868 MHz.
This receiver is equipped with an integrated decoding system, known as DS, SLH, LC, and OMNIDEC.
Thanks to the complex encryption technology, the XR2 868 C offers a high level of security, making it virtually impossible for unauthorized persons to copy the code.
Features and Configurations:
-
Channel 1 (CH1): Pulse output with a normally open (NO) relay.
-
Channel 2 (CH2): Adjustable fixed or pulse output with a normally open (NO) relay, easily adjustable via DS1.
The XR2 868 C receiver is designed to control two different functions, for example opening and closing two different doors or gates.
In addition, the receiver can be used to activate various inputs on your gate control.
This provides flexibility to open your gate fully or place it in a walking position depending on your specific needs.
This receiver is compatible with SLH (Self Learning Hopping code) coding and works perfectly with the following transmitters:
- Faac XT2 SLH 868 MHz
- Faac XT4 SLH 868 MHz
- Faac DL2 - DL4
- VS-SLH-868
- VS-SLH-868-MINI
- TML2-868-SLH LR
- TML4-868-SLH LR
- MAC DL2 - DL4
